Energy Power Distribution Software Supervising Individual Module Industrial Control Scada Monitoring System

1 Basic Information

Model NO.

BCM101

Signal

Discrete

Product Name

Scada Monitoring System

Material

Aluminum Alloy

Cabinet

Array Cabinet

Application

Power Distribution System

Display

7" TFT Screen

Protocol

Modbus-RTU

Installation

DIN Rail 35mm

Power

DC24

2 Product Description

Precision power distribution monitoring system is used for the supervising of power parameters for the DC array cabinet. It measures the voltage, currency, power harmonics and all the ON/OFF status of the circuit breakers both for the incoming line and feeder. A 7" colorful TFT screen is available for real-time data display, providing an Ethernet interface for system connectivity.

Technical Specifications
Protocol	Modbus-RTU
Power	DC 24V
Accuracy	0.1% CT
Metering chip set	TI (Texas Instruments)
Installation type	35mm DIN Rail
Display	7" TFT screen / PC screen
Warranty	2 years

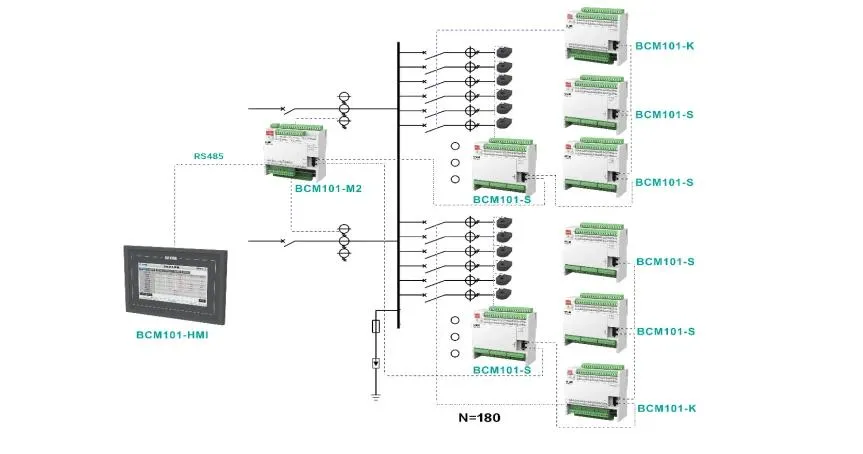

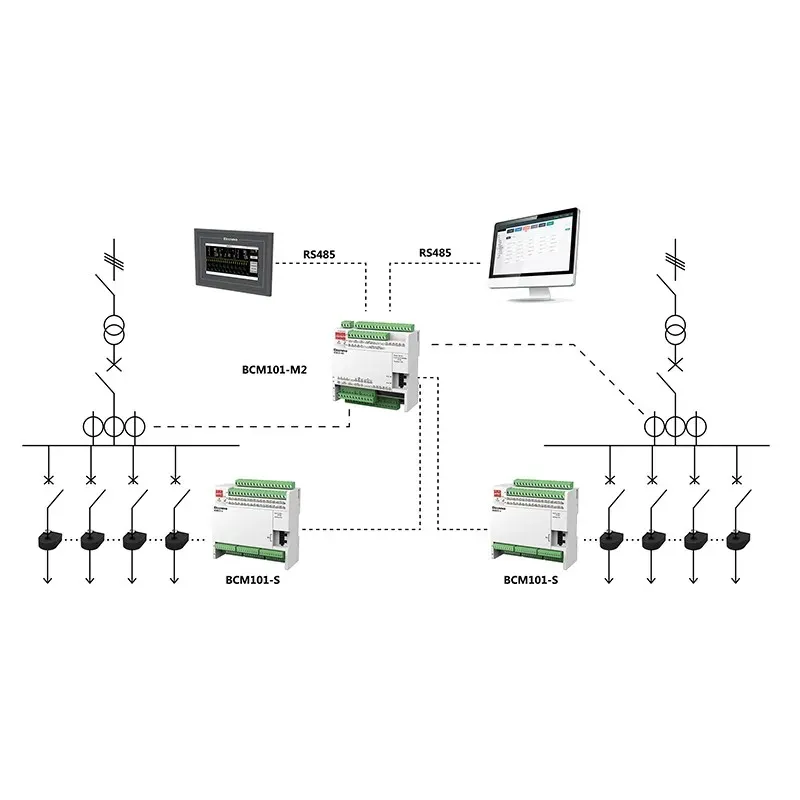

3 Typical Wiring Diagram

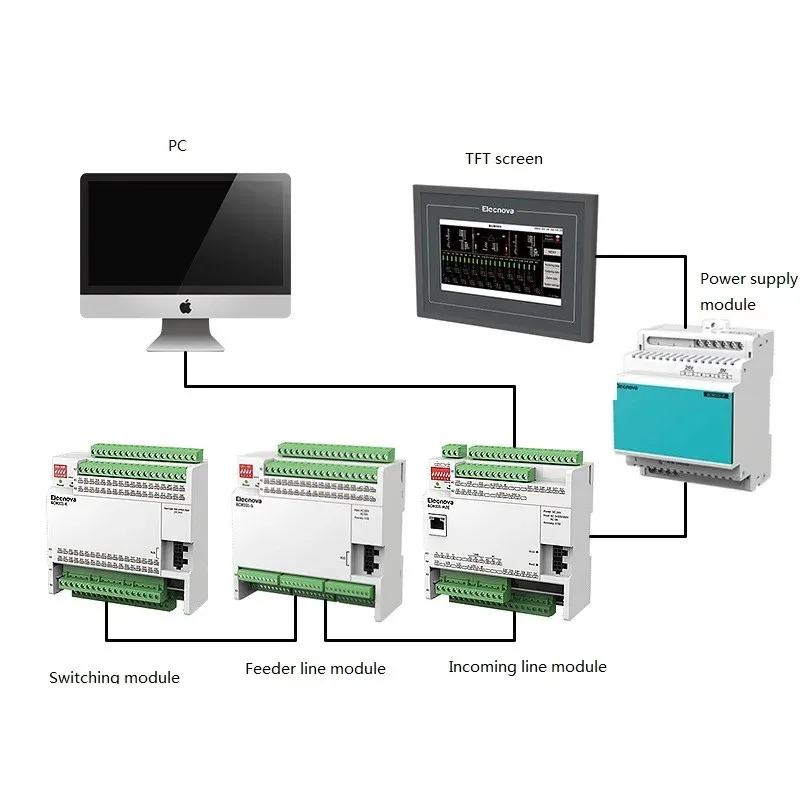

4 Product Modules Display

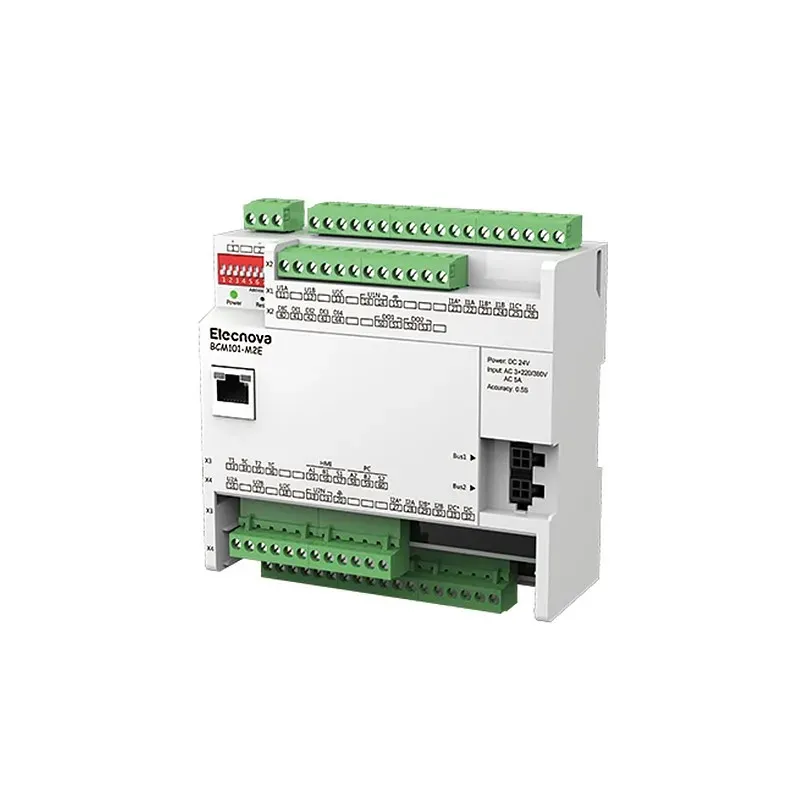

BCM101-M2 Incoming Line Module

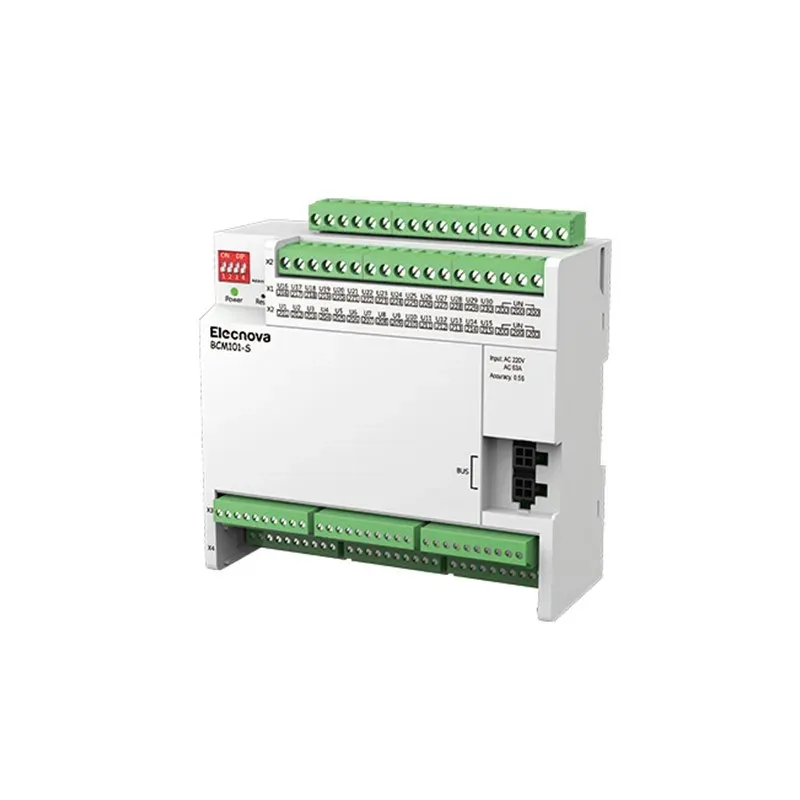

BCM-101-S Feeder Monitoring

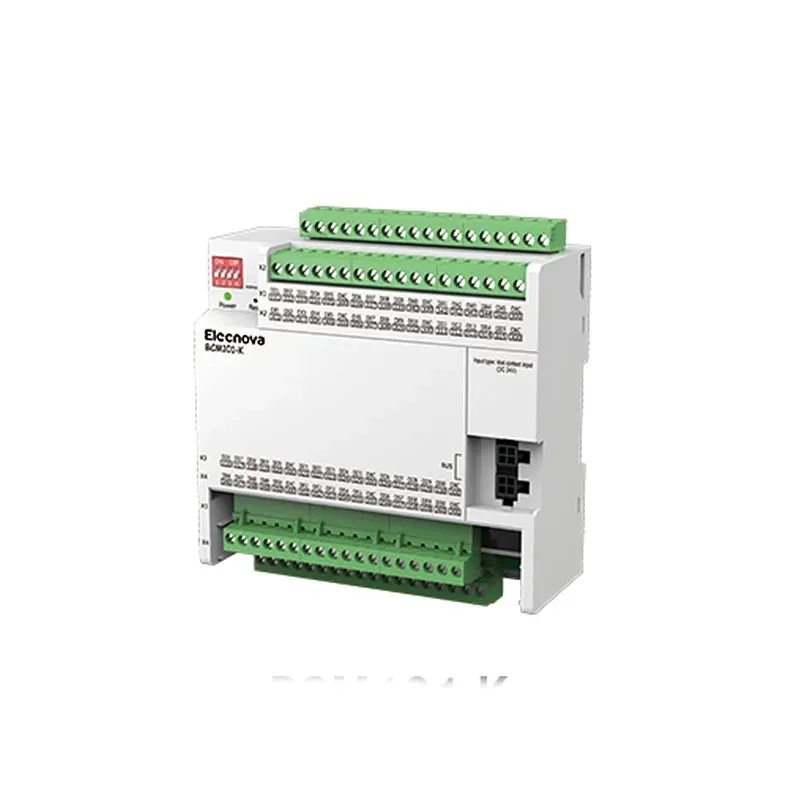

BCM101K Switching Value

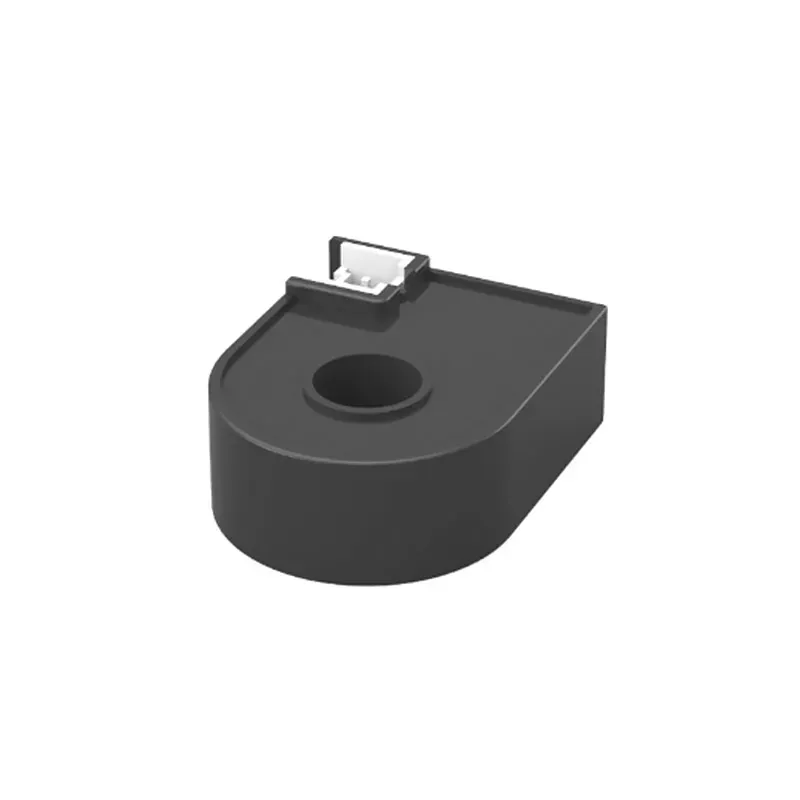

Current Transformer Module

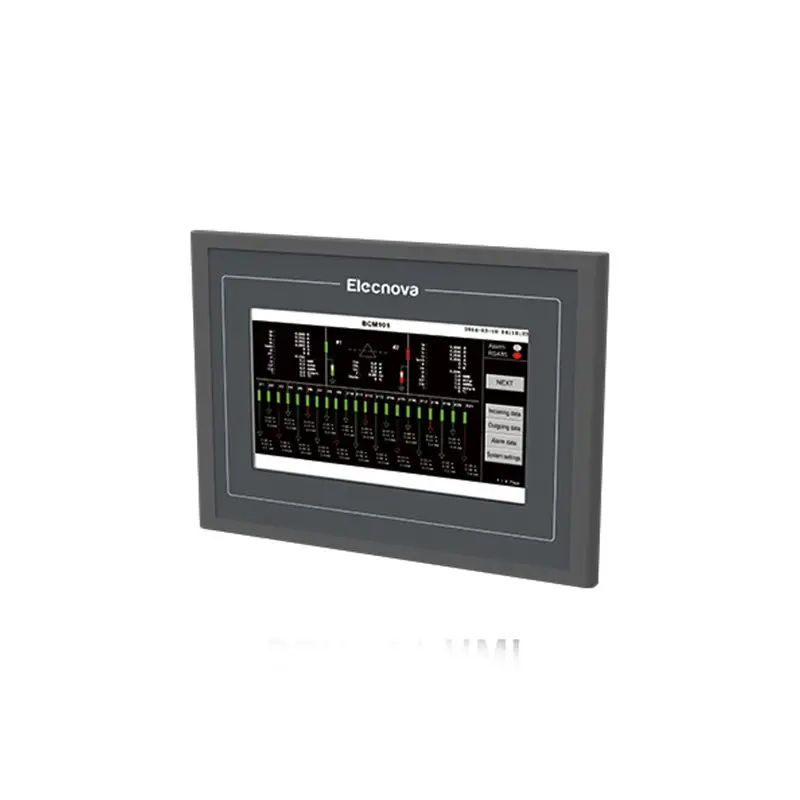

BCM101-HMI Display

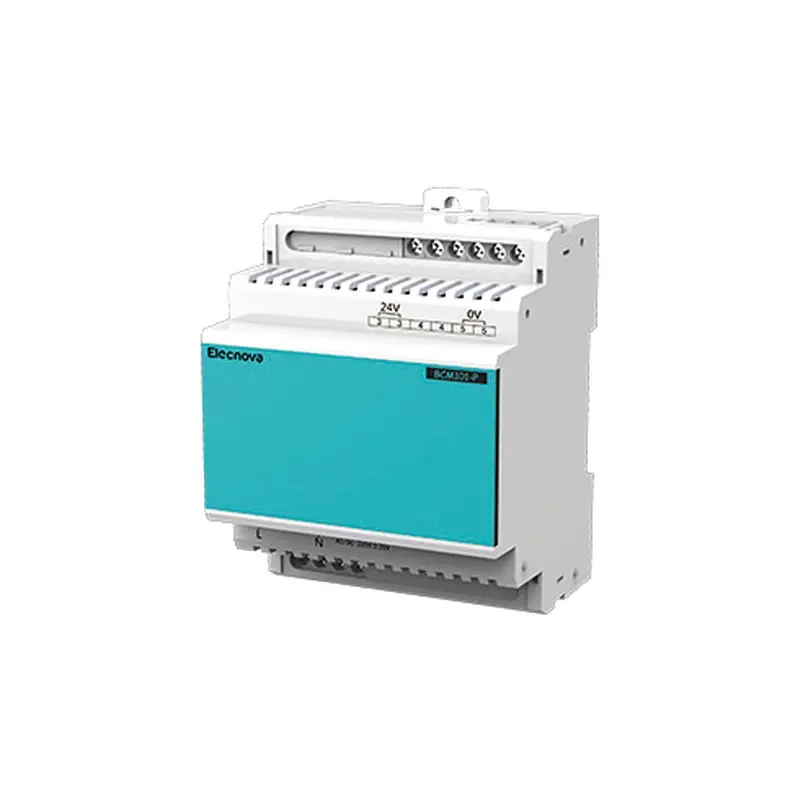

BCM101-P Power Module

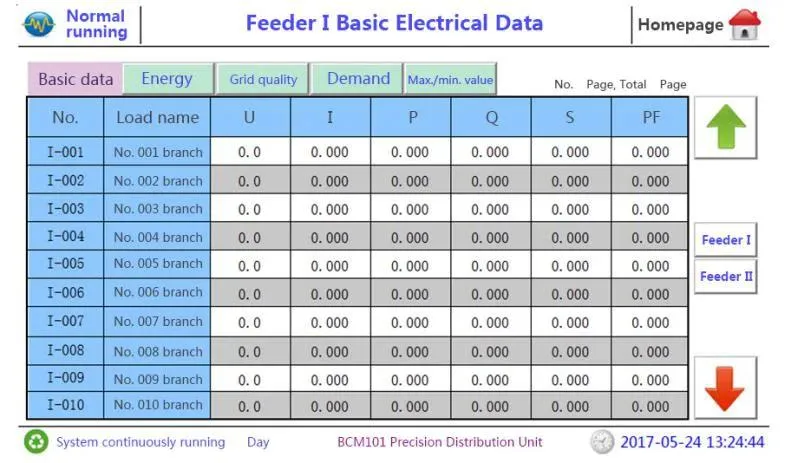

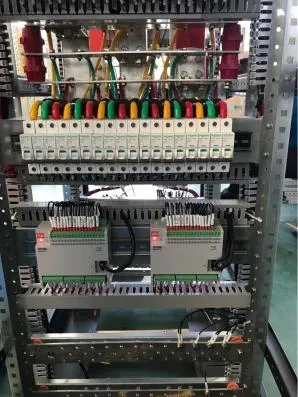

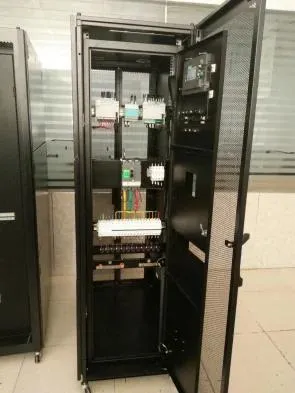

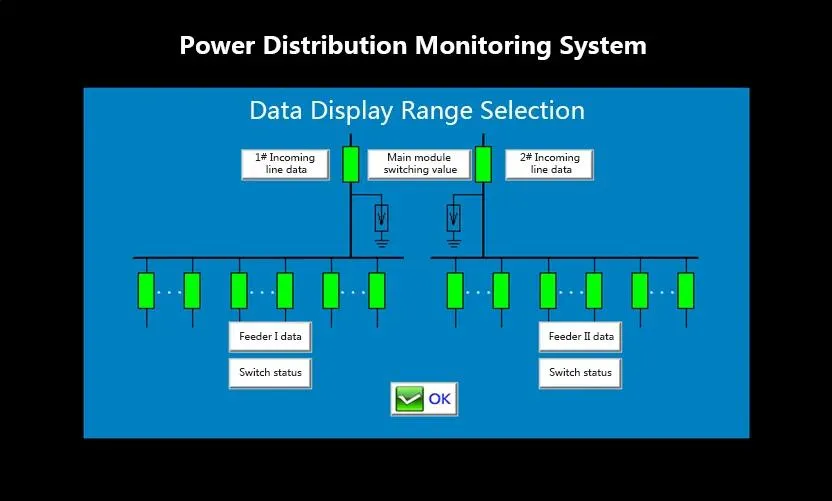

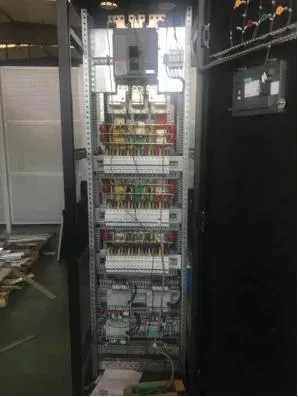

5 Display Demo & Application
